Housing bearing unit

Housing Bearing Unit UCFL24P

The housing bearing unit (UCFL24P) consists of a flanged housing with an oval flange (FL24P) made of polypropylene (PP), which fixes the bearing with a tight fit and a bearing itself. The support surface is strictly perpendicular to the axis of rotation of the bearing. The housing is polypropylene, the bearing is steel.

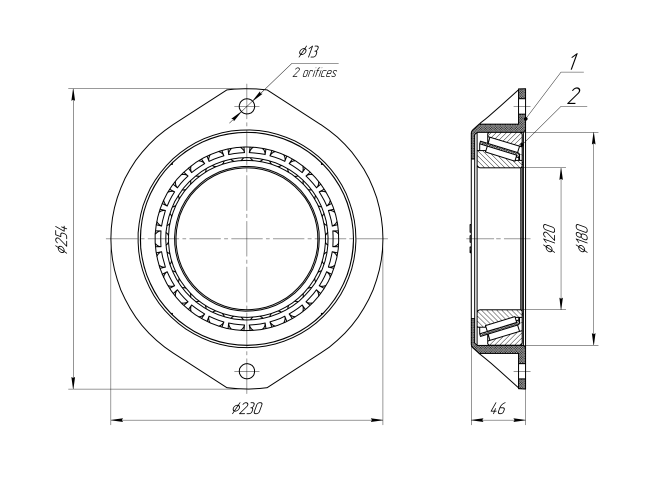

Technical Specifications
Series UCFL
Applicable housing FL24P
Material Polypropylene (PP), steel
Length of the housing, mm 254
Width of the housing, mm 230
Body height, mm 46
Center distance of fasteners on the body, mm 224
Housing diameter D, mm 120
Mounting hole diameter, mm 13
Mounting screw M12
Height of the mounting platform, mm 6
General Characteristics
  • Housing weight FL24P: 0.3 kg
  • Unit weight UCFL24P: 3.3 kg
